Climbolino®E Milling Robot

Description

The Climbolino®E house connection robot offers strong electric power with refined bending ability.

The main advantages of the CLIMBOLINO® E :

– Large range – one robot for pipes from DN60 to DN300* (with optional centralizers), standard hose length 30 meters extendable.

– Powerful electric milling spindle (max 1kW) – equipped with membrane dryer, automatic condensate separator, 3 pre-filters and visible wear limit marking. All components used from leading manufacturers.

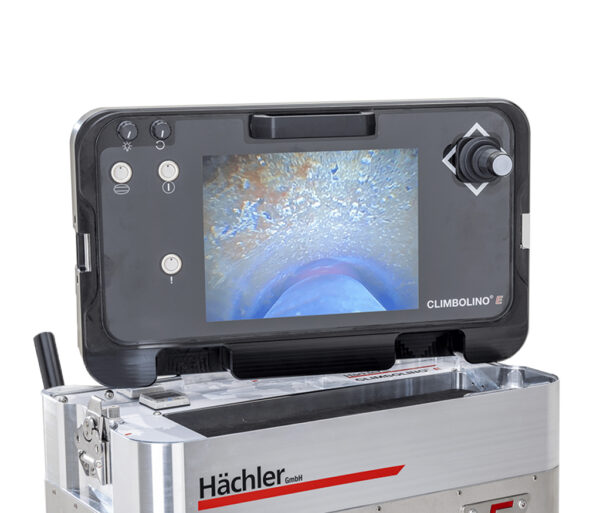

– Perfect display and control – detachable 12″ LED display with optimum visibility even in daylight and 2 meter connection cable. ISO monitor for better protection against moisture. Stepless speed, one-hand joystick operation and proportional control.

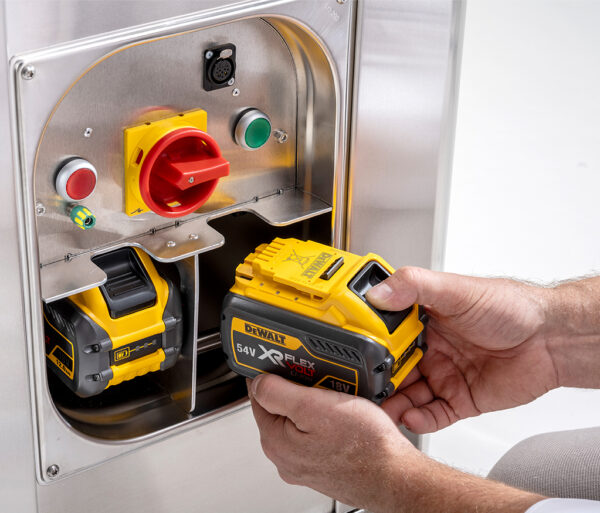

– Independent power supply – 2 extremely powerful 54 V (12 Ah/216 Wh) rechargeable batteries with an operating time of up to 2 hours

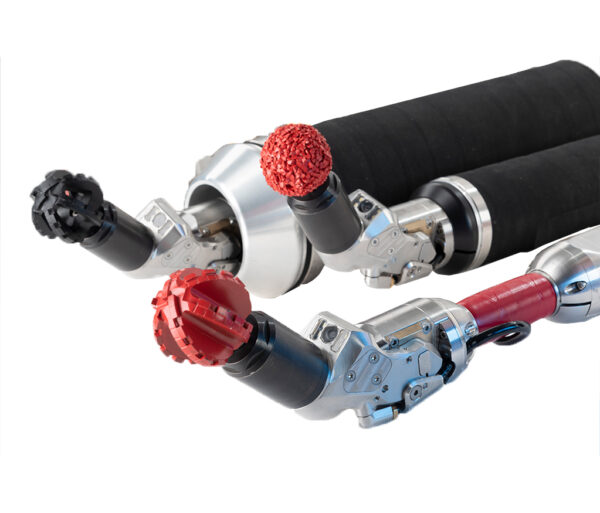

– Standard complete design – always all necessary industrial-quality tools at hand and space for three router heads in a washable foam insert.

– Compact, ergonomic and high-quality finish – manufactured from special stainless steel, large air-filled wheels, ergonomically adapted handles and a slim design that fits through any door and into the smallest spaces.

Technical details:

• 31 cm x 51 cm x 105 cm (L x B x H)
• DN 60 to DN 300 mm – 90° bends from DN100
• 120° pivoting
• 680° rotation
• 6,500-13,000 rpm / infinitely variable
• 1.2 – 3 bar operating pressure
• 57.5 kg
• 130 – 200 l/min air supply / min. 5 bar (oil-free)

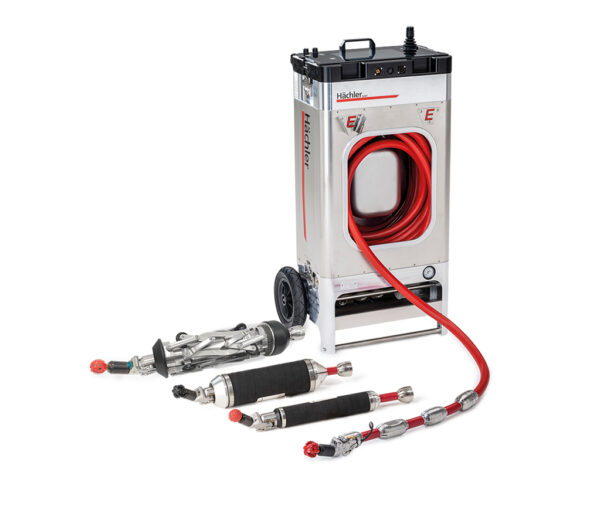

Scope of delivery includes the ClimbolinoE milling robot for pipes DN60-DN150, brace bag centralizer, 30m push cable, set of 3 different milling heads, 2 x 54v Dewalt batteries with charger.
